Overview

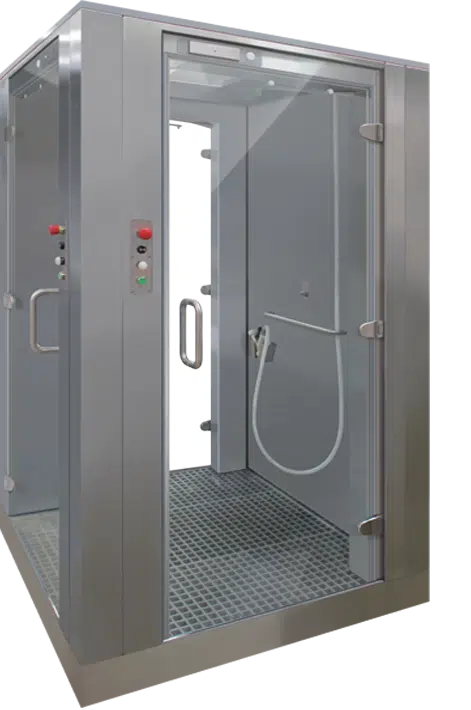

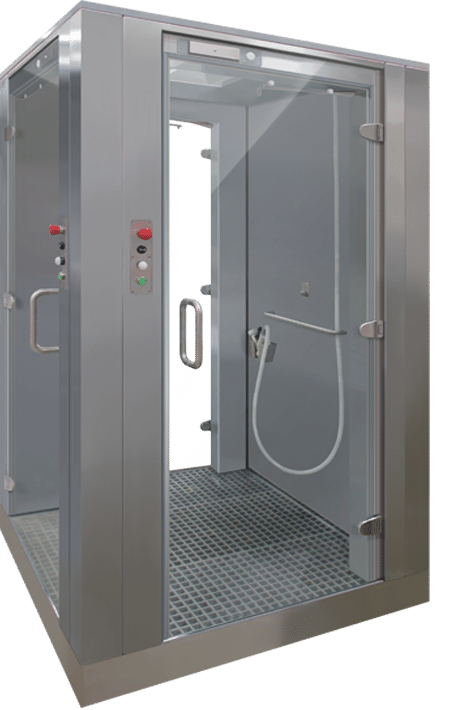

The Ultrasonic Fog Shower from PBSC, also known as a Fog Shower, Mist Shower, Ultrasonic Shower, Personnel Shower, Decontamination Shower, Misting Shower, Personnel Decontamination, Chemical Shower, and a Decon Shower, removes powder from an operative’s suit and is assessed by SafeBridge Consultants Inc. A decontamination shower cycle uses 5 to 10-micron water droplets to encapsulate API particles with minimal wetting through the operator’s PPE suit.
PBSC specialises in high-quality cleanroom solutions, including the Fogging Shower, designed for decontamination of personnel entering or exiting a controlled environment. These systems are critical to maintain strict contamination control.
The reduction in surface concentrations can be up to 800 times less than the starting contamination levels with airborne particles around the operative and during de-gowning also significantly reduced.
The decontamination fogging shower is supplied with:
- Controls
- Utility control panel
- A factory-tested PLC
The location of control cabinets can be above or next to the cleanroom shower with a prewired cable for ease of site electrical installation.
Available with a range of control panel options:
- Standard – Siemens Logo PLC with the option of a remote ‘TDE’ PLC screen if required.
- Rockwell/Allen Bradley PLC with PanelView 800 HMI 4” color touchscreen.
The PLC is a touch screen located within the shower or on the PLC cabinet, which indicates the shower status and the alarms. The cycle recipes are stored, and password accessed by the nominated supervisor.
PBSC uses standard components to your specific requirements and specifications and provides all parts on the shower on plugs to facilitate the ease of replacements so that in the unlikely event of component failure downtime is minimized.
Downloads
Innovation. Design. Quality.
Available in either:
- 304 stainless steel
- 316 stainless steel
Doors:
- Glass – 10mm thick clear toughened/tempered glass.
- Phenolic Resin – High Pressure laminate, 16mm thick with a white finish to both sides of the door. Available with flush glazed windows.
Other options available including a garment chute, breathing air pipe, folding shelf, grab rails, extra led light and wash down gun to name a few.
PBSC’s Fogging Shower is available:
- Straight Through – For a straight through transfer, with the shower mounted between 2 side walls in a “tunnel” configuration.
- Right Angled – For an angled transfer, with the shower mounted alongside 2 90º walls.
- 3 Door – The shower is fitted with a 3rd door for a second point of entry or exit.
- 2 Door – The shower depth is extended to all use by 2 operatives simultaneously.
- Factory Acceptance Test (FAT), carried out in PBSC’s factory.
- Site Acceptance Test (SAT), carried out on-site by a PBSC supervisor and/or staff.
- Commissioning carried out by a PBSC engineer.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Efficient usage of water to minimise liquid waste
- SafeBridge Assessment on performance
- Large range of options available
- Air and water pressures to the fogging nozzles are monitored by the PLC
- Frameless glass door sets
- All cycle stage timers are user adjustable
- PLC controlled LED light
- Emergency override buttons
Applications
Delivers encapsulation or removal of powder from an operative’s suit…
With a range of personnel showers to suit different environments and applications, used within many cleanroom and high containment environments to aid in the reduction of contamination.
