Legacy in Action: PBSC Air Showers Through Time, 1999 to Today

A history of PBSC air showers: from original standard setters to today’s innovations

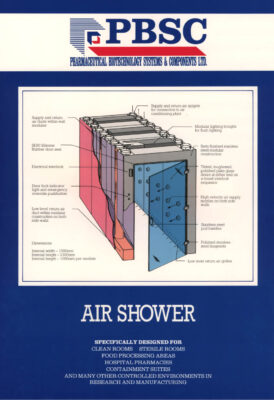

Original PBSC air shower brochure cover page showing labelled technical cross section with interlocked doors, HEPA supply ducts, return air grilles and stainless steel modular construction

For decades, PBSC air showers have supported critical cleanroom environments, keeping people and processes safe. Our original designs established benchmarks for personnel decontamination, offering reliable performance for the cleanrooms of that era. Twenty five years on, our commitment to innovation and quality continues, delivering advanced solutions for the evolving needs of cleanrooms and regulated sectors.

Construction & doors: robust materials and installation flexibility

  • Stainless steel or powder coated steel construction
  • Interlocked toughened glass personnel doors
  • Maximum clear opening with flush frame (straight through design)
  • No crane required for installation – fits through a standard doorway

Airflow & decontamination: high flow nozzles and return air integration

  • High Flow version: 30 adjustable stainless steel nozzles (15 per side)
  • Velocity: 30-32 m/s (approx. 98-105 ft/s), providing 3,670-3,900 m³/hr (approx. 2,160-2,295 CFM)
  • Lowest nozzle only 21.5 cm (approx. 8.5 in) from finished floor
  • Low level return air to AHU built into cubicle top

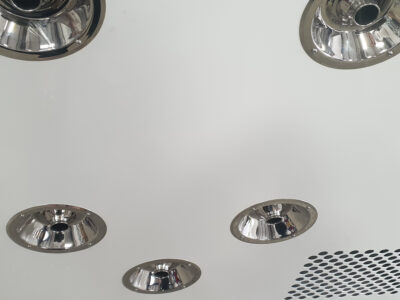

    Interior detail of PBSC air shower showing polished stainless steel high velocity air supply nozzles mounted on wall panel with perforated return air grille

Lighting & controls: PLC options and operator interfaces for status and alarms

  • PLC controlled 24VDC LED lighting that activates as the operator enters
  • Control options: Siemens Logo (standard), Allen Bradley PLC, Siemens S7-1200 PLC
  • S7-1200 option includes touchscreen for status and alarms

Efficiency & safety: low power use, validated filter performance and safe change options

  • Low power usage: 10A, 1Ph, 110-230V
  • Clean filter: 150 Pa / 32 m/s at 5 cm from nozzle
  • Dirty filter: 300 Pa / 28 m/s at 5 cm from nozzle
  • Safe Change Filter option allows safe and efficient filter replacement without compromising
  •  containment – ideal for high containment applications

    3D render of PBSC air shower unit with blue interlocked door, stainless steel construction and high velocity air nozzles for cleanroom personnel decontamination

Additional features: adjustable nozzles, concealed hardware

 and durable finishes

  • Adjustable nozzles without performance loss
  • Frameless glass doors with PBSC concealed closer system
  • Solid stainless steel hinges and pull handles
  • Tinted toughened glass for durability and aesthetics
