Overview

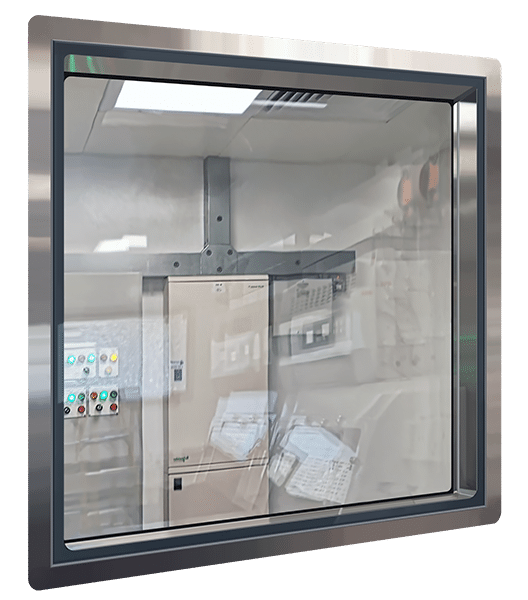

The fire rated cleanroom vision panel by PBSC is an attractive and highly sought-after product on the market. Also known as a fire rated vision window or fire rated observation window, it is designed to provide both visibility and fire resistance. The panel boasts a polished stainless steel architrave and a flush-glazed finish, making it a flawless addition to any cleanroom or controlled environment.
The fire rated glass is clear and clamped between the two outer panes of toughened glass, which provides a flush finish with no visible fixings on either side, making it more visually appealing.
PBSC’s vision panels are essential in potentially hazardous environments where it is vital to see or be seen.
Providing secure fixings via PBSC’s unique sub-frame, customized to the wall thickness, fully concealed with stainless steel reveal liners.
Fire rated vision panels offer fire protection and visibility, preserving compartmentalization and structural integrity while enabling safe evacuation during a fire.
PBSC offers an extensive range of vision panel options which include:
- Double Glazed Vision Panel – Supporting a flush glazed finish with no visible fixings to either side of the panel, made for facilities where it is vital to “see or be seen”. Furnished with secure fixings with sub-frames made to suit the wall thickness and stainless steel reveal liners.
- Lead Shielding Vision Panel – Available for various applications, including code 5, code 6, code 7 etc, and delivers up to 12mm lead equivalency. Having various sizes available, however, please keep in mind the size restrictions as the lead shielding equivalency increases.
- Secondary Glazed Vision Panel – Delivers flush glazing to the inside of any facility where standard external windows are on the exterior of the building. Flexible in size and available in many different versions.
- High Containment Vision Panel – The APR Fire Rated, Double Glazed and Single Glazed Vision panels from PBSC are essential in a controlled environment. A compression gasket mechanically seals the unit to the wall.
PBSC also offers panels complete with magnetically operated Venetian or blackout blinds.
PBSC’s vision panels have been part of an array of projects across the world – Read More
Downloads
Innovation. Design. Quality.
The vision panel is available in standard sizes for new constructions or retrofitting into existing structures in either a 304 or 316 stainless steel construction.
Tripple glazed stainless steel construction provides up to 120 minutes of fire resistance.
The vision panel is available in standard sizes for new constructions or retrofitting into existing structures in either a 304 or 316 stainless steel construction.
The windows provide up to 90 minutes of insulation and are tested to BS 476 part 22.
PBSC’s fire rated vision panel is tested to BS 476 part 22 and EN 1364-1:1999, providing up to 120 minutes of fire resistance.
PBSC’s vision panels are bespoke to suit all wall types and are available in many different versions. These include mullions, lead shielding, and fire rated versions.
PBSC also offers cleanroom vision panels complete with magnetically operated Venetian or roller blinds.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Clear Fire Glass
- Overlapping Flanges to Both Sides of the Opening
- Screen Printed Borders, Bonded to the Glass
- Made to Fit Into Various Wall Thickness
- Flush Glazed Vision Panels to Both Sides
- Easy Clean
- No Visible Fixings
- Providing up to 90 minutes Insulation
- Tested to BS 476 part 22
Applications
Crucial in many potentially hazardous environments...
These panels are commonly used in buildings where fire rated doors or walls are required for safety reasons, such as in commercial buildings, hospitals, schools, and industrial facilities. Also found in many laboratories, biotech, NHS, and pharmaceutical facilities. Delivering a durable, high-quality system, which is easy to clean and consists of a flush finish.
The glazing materials used in PBSC’s fire rated vision panels are specifically designed to resist the passage of flames, smoke, and heat during a fire event.
The Fire Rated Vision Panel is also known as a Vision Panel, Fire Rated Glass, Glazed Panel, Glazed Vision Panel, Glazed Screen, Hospital Window, Cleanroom Window, Cleanroom Window, Laboratory Window, and Controlled Window.
