Overview

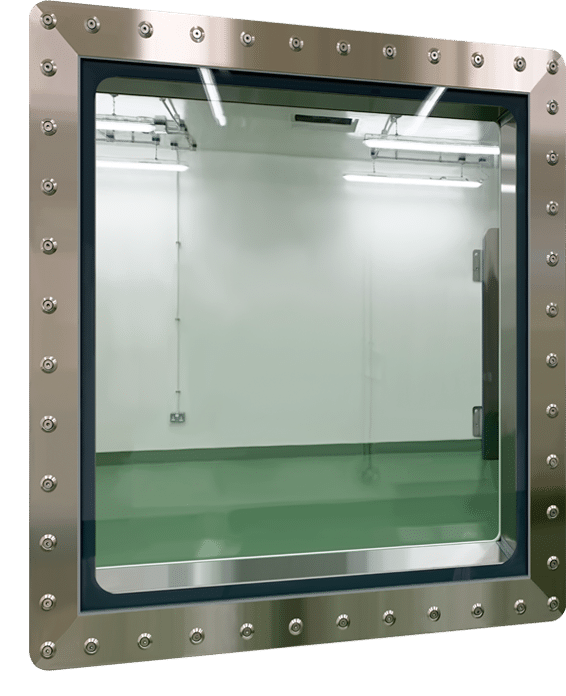

The high-containment APR vision panel also be known as a Hospital Window, Window Panel, High Containment Panel, Lab Window, and APR Vision Panel, is available in Double Glazed, Single Glazed, and Fire-Rated options, featuring a polished stainless-steel frame. It is securely sealed to the wall with a compression gasket for optimal performance. Additionally, PBSC offers window systems finished with structural silicone, ensuring a seamless and professional wall integration.
A compression gasket mechanically seals the unit to the wall. PBSC can also offer window systems that use structural silicone.
The range of vision panels from PBSC provides quality aesthetics and functionality for any high containment facility.
Designed for versatile installation into cast concrete, concrete block, or stud walls. To ensure optimal performance, pressure test points are included for quick and easy verification of the gasket seal integrity.
Extensive test data, detailing performance under pressure differences of up to 2000 Pa, is readily available from our technical department.
Providing security and fire-rated options:
- Security window – available up to SR5, tested and certified by BRE.
- Fire-rated – available up to 120 minutes of integrity
Other options with insulation are available.
PBSC has various vision panel designs to suit your requirements including:
- Cleanroom Double-Glazed Vision Panel – Providing a flush glazed finish with no visible fixings to either side made for facilities where it is vital to see or be seen.
- Cleanroom Fire-Rated Vison Panel – Tested to BS 476 part 22 and EN 1364-1:1999, providing up to 120 minutes fire resistance with a flush glazed finish.
- Cleanroom Secondary glazed Vision Panel – Where standard external windows are used, PBSC can offer a secondary glazed vision panel providing a flush glazed finish.
- Cleanroom Breakout Panel – Providing a quick escape from a cleanroom or containment-controlled environment, Also known as a breakout panel.
- Lead Shielding Vision Panel – Providing up to 12mm lead equivalency and can be used in different applications, including code 5, code 6, code 7, etc…
Contact PBSC for specific information on these specialist windows.
Downloads
Innovation. Design. Quality.
Installed into:
- Cast concrete
- Concrete block
- Stud walls
Mechanically sealed to the wall using a compression gasket.
Available in:
- Double glazed – HC-Vd
- Single glazed – HC-Vs
- Fire Rated – HC-Vf
With a polished stainless steel frame.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Polished stainless-steel frame
- Flush glazing (double glazed version)
- Simple pressure testing
- Double glazed to provide redundancy for sealing
- Providing a friendly and functional environment
- Easy to clean and maintain
- Fast and easy checking
Applications
Providing function with beauty...
Essential in controlled environments from BSL2 to BSL4-Ag, providing a functional open space atmosphere that also gives a friendly, beautiful finish to any facility.
