Overview
Cleanroom vision panels, also called cleanroom observation windows or viewports, are specialized components designed for cleanroom environments, allowing occupants or observers to visually inspect processes, equipment, or personnel inside the cleanroom without compromising the controlled environment.

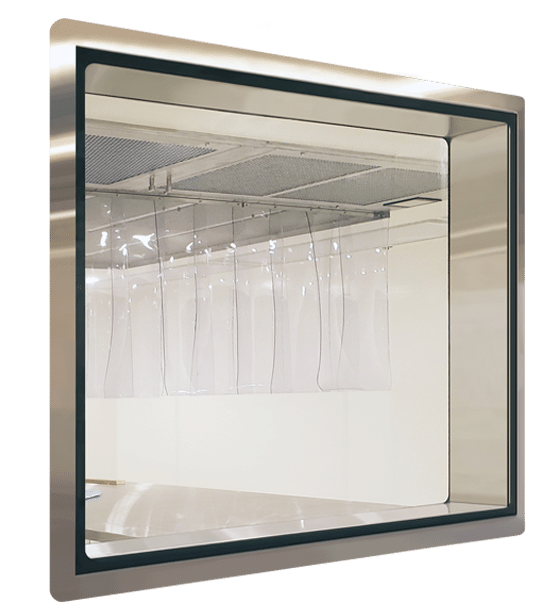

The double-glazed cleanroom vision panel from PBSC delivers a polished stainless-steel architrave with a flush-glazed finish.
PBSC furnishes secure fixings with sub-frames made to suit the wall thickness and stainless-steel reveal liners.
With many of PBSC’s products, the double glazed vision panel features no visible fixings on either side, highlighting meticulous attention to detail and ensuring a sleek, clean appearance.
The vision panel is essential in many different facilities where it is vital to see or be seen.
Having PBSC’s renowned clean flush finish offers a long-lasting, easy-clean, high-quality unit. Visually appealing for any environment, reducing potential contamination.
PBSC offers a range of vision panels in different sizes and versions, such as lead shielding, mullions, and fire-rated options. The panels can also be equipped with magnetically operated Venetian or blackout blinds if needed.
- No Visible Fixings: Enhances cleanliness and aesthetics.
- Double Glazed: Offers superior insulation and clarity.
- Durable Construction: Built to withstand rigorous cleanroom conditions.
- Customisable Options: Available in various sizes and configurations to meet specific requirements.
- Flush Glazed Finish: Provides a seamless, easy-to-clean surface.
Benefits:
- Aesthetic Appeal: No visible fixings create a sleek, modern look suitable for high standard cleanroom environments.
- Versatile Applications: Ideal for pharmaceutical, biotechnology, medical research, and other facilities where visibility and cleanliness are critical.
- Enhanced Cleanliness: The flush design minimizes contamination risks by eliminating crevices where particles can accumulate.
PBSC has various vision panel options proven to meet your project needs including:
- Lead Shielding Vision Panel – Providing up to 12mm lead equivalency for different applications including code 5, code 6, code 7, etc…
- Secondary Glazed Vision Panel – Where standard external windows are used, PBSC can offer a secondary glazed vision panel with a flush glazed finish.
- Fire Rated Vision Panel – Tested to BS 476 part 22 and EN 1264-1:1999, providing up to 120 minutes of fire resistance.
- Emergency Escape Panel – Provides a quick escape from a cleanroom or containment controlled environment, widely used within healthcare, medical research, and the pharmaceutical industry worldwide.
- High Containment Vision Panel – Available double glazed or single glazed with a polished stainless steel frame and is mechanically sealed to the wall with a compression gasket.
Downloads
Innovation. Design. Quality.
PBSC’s cleanroom vision panels can be equipped with integral blinds, providing an added level of functionality and control for various applications.
The blinds are built in and are sealed within the double glazing to ensure they remain dust free and easy to operate.
- Enhanced Privacy and Light Control: Integral blinds allow instant privacy and control over light levels within the cleanroom.
- Maintained Cleanliness: Blinds are sealed within the glazing, preventing dust and contamination.
- Aesthetic Appeal: No visible fixings and the integral blinds create a sleek, modern look suitable for high-standard cleanroom environments.
PBSC’s vision panel is provided double glazed however other glass options are available:
- Mirrored Glass – Glass panels are supplied using mirrored glass, allowing privacy across both sides of the vision panel.
- Magic Glass – Glass panels are provided with privacy transparency changing glass, also known as Switchable Glass, offering advanced functionality and instant privacy.
Constructed from stainless steel grade 304 or 316.
Each panel has flexible sizing to accommodate the end user and specific application requirements.
Panel supports:
- Mullion – Vertical support added to aid in structural integrity. This is standard for panels of 1400mm in width and above.
- Transom – Horizontal support added to aid in structural integrity. This is standard for panels of 1600mm in height and above.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Flanges to Both Sides to Finish Off the Opening
- Flushed glazed Vision Panels to Both Sides
- Customization to Fit Wall Thickness
- Screen Printed Borders
- No Visible Fixings
- Easy Cleaning
- Long Lasting
Applications
Essential in many controlled environments, the vision panel allows natural light with good visibility for safety and high-quality cleanroom technology.
Ideal for facilities requiring high visibility and cleanliness, such as pharmaceuticals, laboratories, NHS, and Biotech facilities worldwide.
The double-glazed vision panel can be customized to fit specific measurements or retrofitted into existing buildings.
