Overview

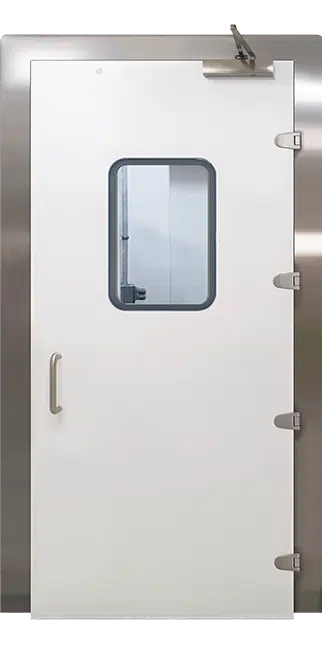

Being ideal for clean room, corrosive and laboratory environments, the PBSC’s phenolic resin doors are incredibly tough.

Meticulously engineered and manufactured with a solid core of chemical grade phenolic resin, these doors are resistant to most chemicals and cleaning agents.

Read more

Downloads

Datasheet

Features

  • High Impact Resistance
  • Full Wrap Around Frame Option, Without Rebate
  • Excellent Resistance to Most Corrosive Chemicals
  • Solid Core Door Leaf
  • Unique PBSC's Stainless-Steel Hinge Assembly
  • Purpose Built Solid Stainless-Steel Hinge to Provide Easy Cleaning and Opening up to 170°
  • Flush Glazed Vision Panels in Customs Sizes
  • Flush Maglock in Frame
  • Concealed Closer System Available for Added Hygiene

Applications

The ideal solution whilst improving the looks of your facility

The Phenolic Resin door set is ideal for cleanroom, corrosive and laboratory environments and is available in single or double door leaf construction with the unique PBSC cast stainless-steel hinge assembly, allowing a maximum clear opening and can be bespoke to fit existing walls.

PBSC's Phenolic Resin Door can also be known as a Hospital Door, NHS Door, Clean Room Door and a Chemical Grade Door.

Technical Specification

  • Frame Construction: 304 or 316 Stainless Steel in 240s Finish
  • Door Weight: 20kg/m2
  • Door Closer: Concealed or Surface Mounted Options. EN2-EN6
  • Maximum Clear Opening Single Door: 1200mm Wide x 2400mm High
  • Maximum Clear Opening Double Door: 2500mm Wide x 2500mm High
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.
  • Please contact PBSC for specific design options.

Options

  • Electric / Hydraulic Auto Openers / Closers
  • Single, Double or Leaf & 1/2 Door Options
  • Air Transfer Grilles
  • Light Tight Vision Panels
  • Interlock Systems
