Overview

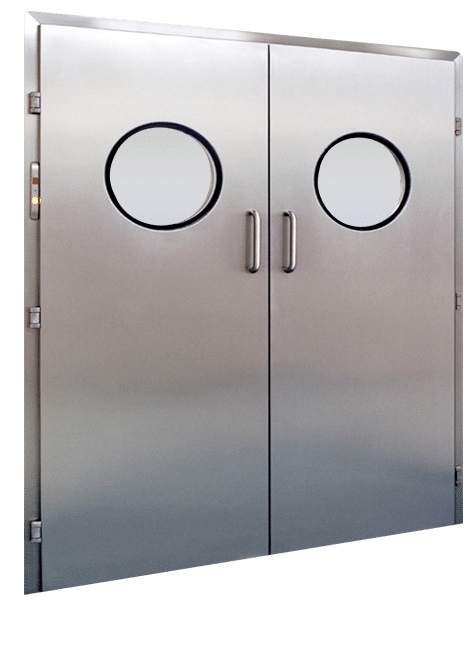

The cleanroom steel door set from PBSC is a highly robust door set system. PBSC is well known for its quality and this system shows this within the flush panel and seamless frame.

One of PBSC’s original doors, developed for the cleanroom environment with extensive cleanroom technology and research to help this door set stand the test of time, with its precision design and reputation for lasting durability.

Read more

Downloads

Datasheet

Features

  • Full Wrap Around Shroud / Architrave – Which is Provided as Stainless or Powder Coated to Match the Door Leaf
  • A Sturdy 3 Piece Framework System
  • No Rebate on the Door Frame
  • A Welded and Polished Frame Construction
  • Unique PBSC Cast Stainless Steel Hinge Assembly – Allowing for Maximum Clear Opening
  • A Robust Steel Sub-Frame
  • Custom Frame Width Made to Suit Site Specific Wall Thickness

Applications

Withstanding the test of time with durability and cutting-edge technology...

Specifically developed with PBSC's high quality and extensive experience, this classic steel door set has been designed for the cleanroom environment, with a customized frame width to accommodate the facility's wall thickness and construction specifications. An ideal door set for a fast-paced environment with no rebate and a beautiful design.

PBSC's Classic Steel Door can also be known as a Hospital Door, Medical Door, Clean Room Door, Laboratory Door, NHS Door, Steel Door, Heavy Duty Door, APR Door, and Healthcare Door.

Technical Specification

  • 1.6mm Stainless Steel Leaf in 240 Grit Finish, 50mm Thick
  • Door Weight: 40kg to 75kg
  • Door Closer: Fixed Strength of 3 to 5 EN
  • Maximum Structural Opening Double Door: 2012mm Wide x 2250mm High
  • Maximum Structural Opening Single Door: 1006mm Wide x 2250mm High
  • Please contact PBSC for specific design options.
  • -
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.

Options

  • Single, Leaf & 1/2 or Double Door Options
  • Light Tight Vision Panels
  • Flush Maglocks for Interlock Systems
  • Air Transfer Grilles
  • Electric / Hydraulic Auto Openers / Closers
