Overview

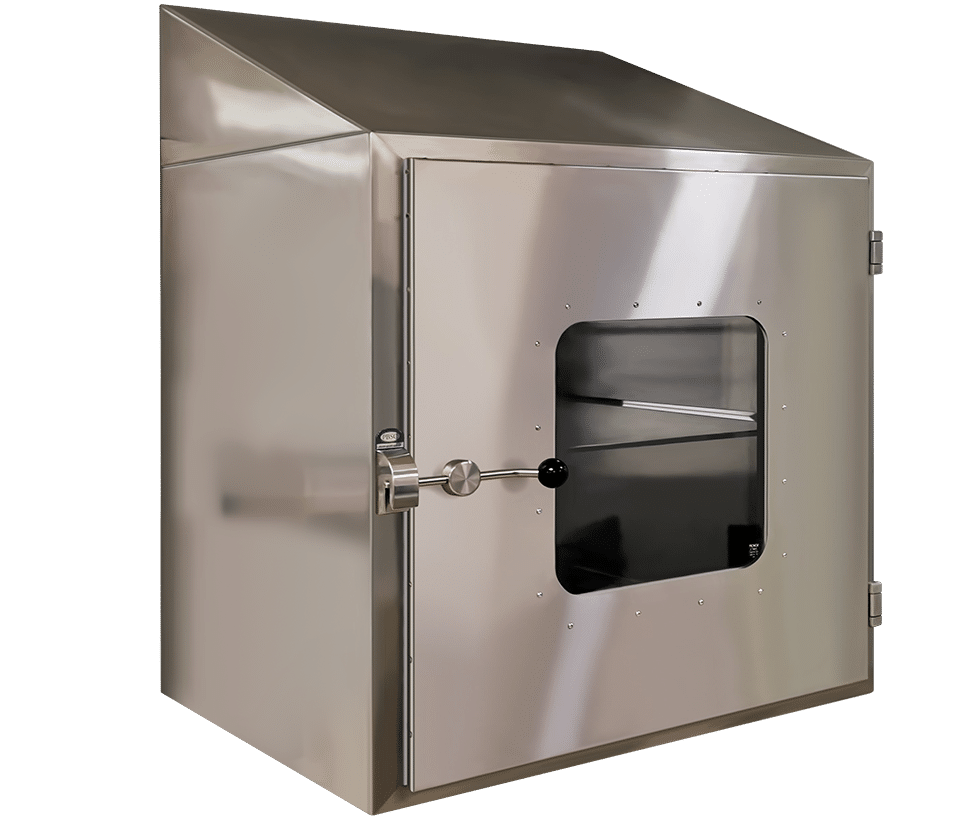

PBSC’s fire rated pass through hatch, also known as a fire rated chamber, fire rated box, fire rated pass through window, or fire rated cleanroom hatch, is a specialized hatch used to transfer materials between different areas in a facility while maintaining fire resistance and contamination control. It is crucial in environments where fire safety is a priority, such as laboratories, cleanrooms, and industrial facilities.
Their robust design, fire resistant materials, and advanced safety features make PBSC’s Fire Rated hatch indispensable in environments where fire safety is a priority, ensuring both protection and efficiency in material transfer processes.
If you need a pass through hatch placed within a firewall, PBSC provides a tested and certified fire rated option in either a wall or floor mounted hatch configuration. Depending on size, the unit comes with fire rated vision panels in the stainless steel door leaves, prioritizing operator and facility safety.
With integrity certification of up to 90 minutes, the fire rated transfer hatch offers 30 minutes of insulation when both insulation and integrity are required.
The hatch is designed to be durable and easy to clean. It features a reliable interlock system that prevents cross contamination and pressure loss when moving materials or equipment between different cleanroom areas while minimizing the risk of contamination.
PBSC has the certification to provide options such as HVAC air flow connection to the hatches, with or without terminal HEPA filters on the supply to the hatch.
PBSC has various pass through box options and custom sizes proven to meet your project needs including:
- Wall Mounted Pass Through Chamber
- Trolley/Floor Mounted Pass Through Chamber
- Fan Filter Pass Through Chamber
- High Containment Barrier Pass Through Chamber
Please use our contact page to request more details from our technical support teams on how we can support your project needs.
Many facilities use hatches to quickly move goods between different grades of rooms. These hatches are designed to be clean and visually appealing, maximizing their impact…
Downloads
Innovation. Design. Quality
PBSC’s reliable interlock system aids in the reduction of cross-contamination and pressure loss by ensuring that both doors cannot be opened simultaneously. This system allows time for the hatch “air” to recover before the next door can be opened, ensuring maximum safety. The interlock feature is securely mounted between the two skins of the hatch body to prevent tampering. It is also available as an electro mechanical option with timed interlocks for air purge and UV light cycles.
PBSC’s fire rated hatch comes in either a wall mounted or floor mounted construction, both have the following:
- The hatch shell is manufactured from polished stainless steel with a double skin
construction. - The door panels comprise of one Pyran glass pane located within each door panel to
maintain visibility without compromising safety. - Powder coated option available with a powder coated Zintec material.
- 304 or 316 stainless steel material options.
Every hatch is available in a range of sizes and configurations to meet the specific requirements of the end user and application.
- Single or double doors per side.
- Mid Mount – The hatch will be mounted centrally into the existing wall space.
- End Mount – The hatch will be mounted via one side into the existing wall space.
- Build In – The hatch will be mounted between the existing wall space.
- Orientation – Straight through, right angle, or 3 door (T section) orientation.
- Smooth and easy to clean surfaces to prevent contamination build up.
- The flush surfaces and high quality seals ensure a clean and controlled environment.
- Enhances workflow by providing a dedicated and safe transfer point.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Regular Maintenance, inspection, and testing of seals, interlocks, and fire rated components is crucial to ensure ongoing compliance and performance.
Features
- Tested up to 90 Minutes Integrity.
- Easy to Clean Surfaces, with minimal visible fixings.
- Wall or Trolley Mounted solutions.
- Used in a Broad Range of Applications, with clean-up to ISO 5/6 possible.
- Solid Stainless-Steel Hinges.
- Custom Sizes to fit your requirements.
- Concealed Mechanical Interlock as standard.
- Electrical controls for timed air purge are available.
Applications
A proven fire-rated hatch for protection in cleanroom environments...
All hatches from PBSC have been developed to support the reduction of pressure loss and importantly, cross-contamination, whilst passing products between different room classifications and can be used in a broad range of applications from healthcare, pharmaceutical, and medical research facilities worldwide.
