Effective against micro-organisms and viruses, providing a low heat decontamination solution for heat-sensitive items such as biologic preparations or electronic equipment. The decontamination pass through hatch is essential to a facility process ethos for material flow into or out of the critical environment.

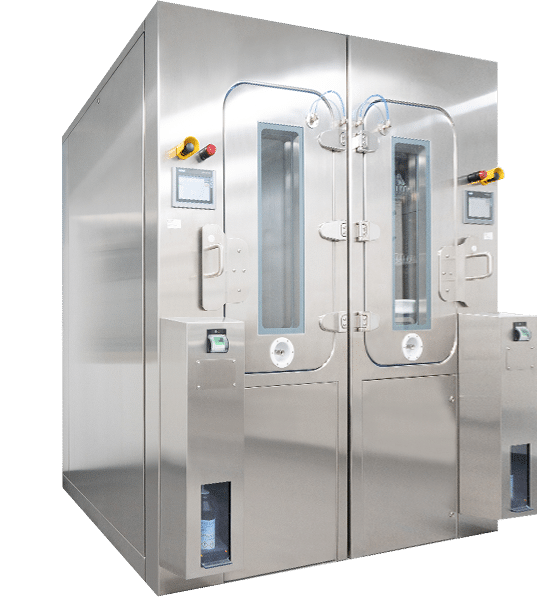

The freestanding 6Log surface disinfection hatch from PBSC is a unit idea for material decontamination in Bio-Pharma, Bio-Medical and High Containment applications, with various hatch sizes with pneumatic seal doors available, from 2’ x 4’ up to 4’ x 5’ (WxH)

Read more




  • H202 Bottle Housing
  • Point Contact Roller System
  • Decontamination Cycle Times From 30 Minutes
  • 7”, 12” or 15” Siemens Comfort Touch Screens
  • Flush Maglock with Hidden Proximity
  • No Pit in the Floor Required
  • Override Buttons
  • Bespoke Trolley and Racking Designs Allowing Easy Loading/Unloading
  • Minimal Visible Fixings
  • Full-Service Support Contracts Available to Suit GMP and Life Science Facilities
  • Data Integrity Compliance
  • Large Vision Panels, With Flush Glazed Tempered Glass


An integrated Material Decon solution effective against micro-organisms and viruses…

The integrated decontamination hatch is ideal for facility applications where floor space is limited, and the generator isn't required to use with other equipment. Used worldwide to eradicate problematic bacteria, viruses, and fungi on material loads of equipment entering/exiting controlled areas throughout Containment, Biomedical, and Pharmaceutical/Bio-Pharmaceutical facilities.

PBSC's Integrated Decontamination Hatch can also be known as a Transfer Hatch, Pass Box, Pass Thorough, Through Box, Trolley Box, VHP Decontamination, VHP Sterilization, Pharmaceutical decontamination, Decontamination Transfer, Decon Hatch, Decon Transfer, and a Decon Pass-Through.

Technical Specification

  • H2O2 loaded on the hatch with printer above
  • All critical parameters controlled via the hatch PLC
  • Cycle times from 30 minutes
  • 6Log decontamination
  • Siemens S7-1200 or S7-1500 PLC, with either 7”, 12” or 15” Comfort Touch Screens
  • Data acquisition and management to allow for 21 CFR Part 11 and FDA compliant
  • Option for air handling system without connection to the building HVAC
  • Please contact PBSC for specific design options.
  • -
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.


  • DQ package including FDS, P&ID, HDS etc...
  • Project Specific Approval Drawing
  • Commissioning of Hatch
  • Installation Services
  • Operator Training
  • Gas Cycle Development
  • IQ-OQ
  • Performance Qualification
  • Range of air handling options
  • 6-12 months-servicing/calibration
  • Customised Racking
