Overview

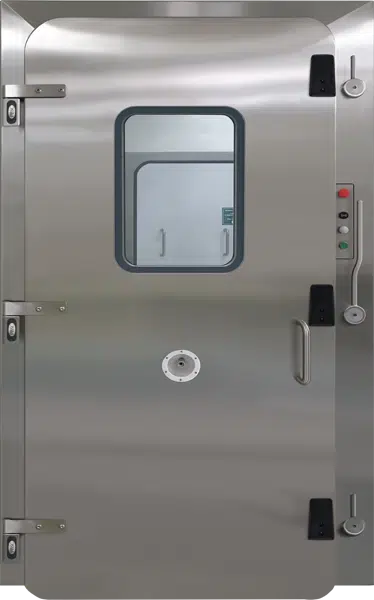

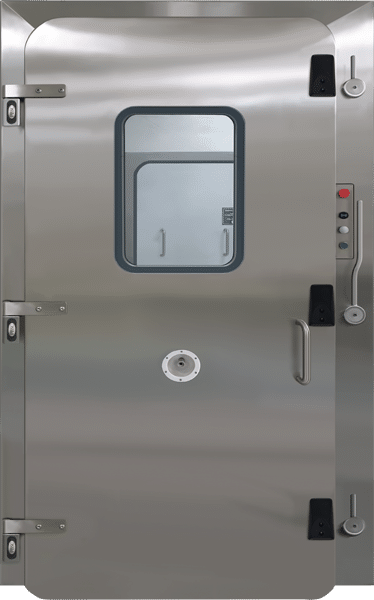

PBSC’s high containment APR door set also known as High Containment Doors, Hospital Doors, Lab Doors, Laboratory Doors, Stainless Steel Doors, APR Doors, and Cleanroom Doors, features a flexible seal that securely compresses against the doorframe, ensuring a reliable airtight barrier.
This high containment mechanical seal door set comes in your choice of stainless steel or machined HPL door leaves. Both options have been tested to withstand 2500PA (10″ W.G.). The door set can be connected to an access control system if required. To ensure a tight seal, we use a stainless steel arm to compress the combed edge of the frame against the seal. Our mechanical mechanism is mounted in the door frame, reducing the weight of the door and improving maintenance.
A highly specialized solution designed for controlled environments…
The door frame features a stainless steel arm that can easily compress the combed edge against the seal. This mechanical mechanism is installed within the frame, which ensures that the door is lighter and easier to maintain.
PBSC offers an Access Control System for building entrances, centrally managed via a PBSC control panel, which is available upon request.
Operation of this airtight door is a straightforward one-handed maneuver available on both sides of the door.
Advantages:
- Durable Construction: Made from high-quality stainless steel to withstand rigorous use and cleaning protocols.
- Enhanced Containment: Ensures a reliable airtight barrier.
- Versatility: Suitable for various cleanroom and containment-controlled facilities.
- Long-Term Durability: High-quality components ensure reliable performance over time.
- Ease of Maintenance: Servicing and maintenance available from PBSC.
PBSC has a range of door options available:
- High Containment Inflatable Seal APR Door Set: A good choice for high-traffic applications where superior airtight containment is needed.
- Cleanroom Glass Door Set: This set has a showpiece appearance and exceptional functionality. It contains a toughened glass door leaf and a clean stainless-steel frame.
- Cleanroom Stainless Steel Door Set: This is a well-engineered, robust steel door system with a seamless frame and flush vision panel.
- Cleanroom Phenolic Door Set: Made with chemical grade phenolic resin, perfect for labs, cleanrooms, and corrosive environments.
- Emergency Escape Panel: Providing a quick escape and safe exit from a cleanroom or containment-controlled environment.
Downloads
Innovation. Design. Quality.
Materials of construction:
- 304 Stainless Steel
- 316 Stainless Steel
Sub-Frame type:
- Bolted Sub-Frame (Stud Partition, Block, or Modular Partition Wall) – 5mm zintec steel to be fixed into the wall to form the engineered structural opening. Available with a compression seal to the door frame.
- Cast-In Door Frame (Concrete Wal) – The door frame is designed to be fully cast into the wall at the time of shuttering. The door frame is filled with concrete during the casting process and no site welding or grout fill is required. The door frame is designed with stops for the performance coating.
- Cast Sub-Frame (Concrete Wall) – 5mm stainless steel grade 304 to be cast into the concrete walls to form the structural opening. Available with a compression seal or welded seal to the door frame. If welded, please advise if the frame will require grout filling on-site.
Vision Panels:
- Radius double-glazed vision panel with 6mm thick toughened glass panes.
- Small Squire double-glazed vision panel with 6mm thick toughened glass panes.
Both options are bonded to the top section of the door panel for a flush finish to both sides, with various sizes available depending on your project needs.
Available in:
- Stainless Steel
- Phenolic Resin
Both are constructed from 5mm and 3mm stainless steel sections with radiused corners.
This system is fitted with robust linkage for long-term durability.
Airtight Barrier:
A robust and flexible seal is manually compressed against the doorframe, forming an effective barrier against leakage. This design operates without the need for compressed air, ensuring fail-safe performance even during a power outage.
- Radius double-glazed vision panel with 6mm thick toughened glass panes.
- Small Squire double-glazed vision panel with 6mm thick toughened glass panes.
Both options are bonded to the top section of the door panel for a flush finish to both sides, with various sizes available depending on your project needs.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Mechanism is mounted in the door frame for more robust design
- Stainless steel or solid core door HPL leaf
- Flush glazing to both sides of the door leaf
- Easy One-handed operation, with 3-point compression
- Robust, fail-safe design
- Configurable button sets and LED indicators
- Fail-safe seal
- Low maintenance
Applications
With the raised threshold these doors create a natural bund, assisting containment of liquid during washdown…
Mechanical seal door sets from PBSC are designed for applications where high containment is required, such as in BSL3 and BSL4 labs.
